7050 Aluminium Chequered Plates: The High-Performance Solution for Demanding Applications
In the world of industrial-grade aluminium, certain alloys stand out for their exceptional strength, durability, and performance under pressure. Among them, 7050 aluminium chequered plates have carved a niche in sectors that demand both mechanical superiority and safety. Known for their toughness and corrosion resistance, these plates have become indispensable in industries like aerospace, defense, marine, and high-load infrastructure.
This content explores the unique benefits and applications of 7050 chequered plates, explaining why they are a preferred choice for engineers and manufacturers around the globe.
Related
Products
6082 Aluminium Chequered Sheets
What Makes 7050 Aluminium Unique?
7050 is a heat-treatable aluminium alloy that falls within the 7xxx series, primarily composed of zinc as the principal alloying element. Designed for strength and toughness, it outperforms many other aluminium grades in terms of fatigue resistance and stress corrosion cracking.

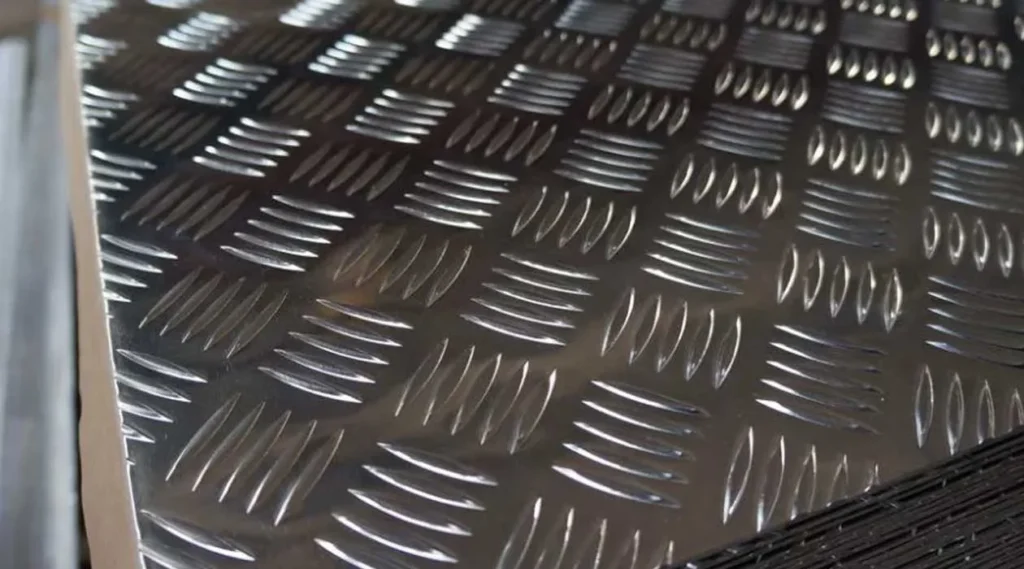

When this high-performance alloy is transformed into a chequered plate with a textured pattern (usually diamond or five-bar), it gains additional advantages in terms of safety and structural grip.
Key Advantages of 7050 Aluminium Chequered Plates
1. Exceptional Strength-to-Weight Ratio
7050 aluminium is among the strongest commercially available aluminium alloys. Despite its strength, it maintains a relatively low weight, which is critical for weight-sensitive applications like aerospace and transport equipment.
2. Superior Corrosion Resistance
This alloy is specially designed to offer strong resistance to stress corrosion cracking, especially in thick sections. It also performs well in harsh environments where exposure to moisture, saltwater, or chemicals could be a concern.
3. Excellent Fatigue Resistance
7050 plates can withstand repeated loading and unloading cycles, making them perfect for areas subjected to vibration or continuous mechanical pressure. This is essential for bridges, platforms, and vehicle flooring.
4. Enhanced Safety with Textured Surface
The chequered design adds an extra layer of protection by increasing grip. Whether it’s a walkway in an aircraft hangar or a ramp in a warehouse, this anti-slip property improves overall workplace safety.
5. Good Machinability
Despite its strength, 7050 aluminium remains machinable. It allows for cutting, drilling, shaping, and welding under proper conditions, enabling manufacturers to tailor it to specific project requirements.
Applications Across Industries
7050 chequered plates are not limited to one specific sector. Their strength, durability, and anti-slip surface make them versatile and suitable for a wide range of demanding environments:
Aerospace & Aviation
- Aircraft maintenance platforms
- Hangar flooring and steps
- Cargo handling areas
Defense & Military
- Armoured vehicle flooring
- Mobile bridge components
- Equipment loading ramps
Marine Industry
- Offshore walkways and decks
- Boat ramps and dock surfaces
- Cargo vessel flooring
Heavy-Duty Transportation
- Commercial truck beds
- Loading platforms
- Bus and trailer floors
Industrial Infrastructure
- Walkways in chemical and power plants
- Safety platforms and stair treads
- Warehouse and logistics hubs
Aluminium 7050 Chequered Plates Chemical Composition
| Weight % | Zn | Cu | Mg | Zr | Fe | Si | Mn | Ti | Cr | Others (total) |
|---|---|---|---|---|---|---|---|---|---|---|
|
Minimum |
5.7 |
2.0 |
1.9 |
0.08 |
– |
– |
– |
– |
– |
– |
|
Maximum |
6.7 |
2.6
|
2.6 |
0.15 |
0.15 |
0.12 |
0.10 |
0.06 |
0.04 |
0.15 |
Mechanical Properties of Aluminum 7050 Chequered Plates
| Material | Temper | Tensile Strength (ksi) | Yield Strength (ksi) | Elongation in 2″ % |
|---|---|---|---|---|
|
Aluminium Alloy 7050 Angle (AMS 4340) |
T76511 |
79 |
69 |
0.08 |
|
Aluminium Alloy 7050 Angle (AMS 4340) |
T73511 |
70 |
60 |
8 |
|
Aluminium Alloy 7050 Angle (AMS 4342) |
T74511 |
73 |
63 |
7 |
Why Choose 7050 Chequered Plates Over Other Grades?
While there are many aluminium chequered plates in the market (like 6061, 5086, and 3003), 7050 brings unmatched strength and fatigue resistance to the table. Here are a few reasons to consider this grade over others:
- For structural integrity under heavy loads
- For projects requiring corrosion resistance in thick sections
- For long-term reliability in aggressive environments
- For safety-critical applications with high foot or vehicle traffic
Its performance justifies its use in advanced engineering projects where safety and durability are non-negotiable.
The Sustainability Edge
Aluminium is a sustainable material, and 7050 is no exception. Despite being a high-strength alloy, it is still fully recyclable without losing its original properties. This makes it an environmentally friendly choice for industries aiming to reduce their carbon footprint.
Moreover, lighter aluminium structures mean reduced fuel consumption in transport-related applications, supporting eco-efficiency goals.
Design Flexibility
Manufacturers appreciate the adaptability of 7050 aluminium chequered plates. The material can be customized in terms of thickness, length, width, and pattern style. Whether it’s for a military-grade ramp or an aerospace maintenance platform, custom solutions are achievable.
This flexibility helps reduce waste, lower production time, and enhance the end product’s functionality.
Maintenance and Longevity
Structures built with 7050 chequered plates typically enjoy a longer service life and require less maintenance. The anti-corrosion properties reduce the need for regular treatments, coatings, or repairs. This translates into lower operational costs and fewer disruptions.
Regular cleaning with mild detergents is usually enough to maintain appearance and performance, even in high-traffic or outdoor environments.
Conclusion
7050 aluminium chequered plates are more than just textured metal sheets. They are high-performance solutions for environments that demand strength, durability, safety, and resilience. Whether it’s for the defence sector, aerospace maintenance, or industrial walkways, this alloy proves its worth through exceptional mechanical properties and longevity.
As industries evolve and demand higher standards for materials, 7050 chequered plates will continue to play a vital role in high-load, safety-critical, and sustainable infrastructure solutions.
By choosing the right grade and working with trusted suppliers, engineers and developers can ensure performance, efficiency, and reliability for years to come
